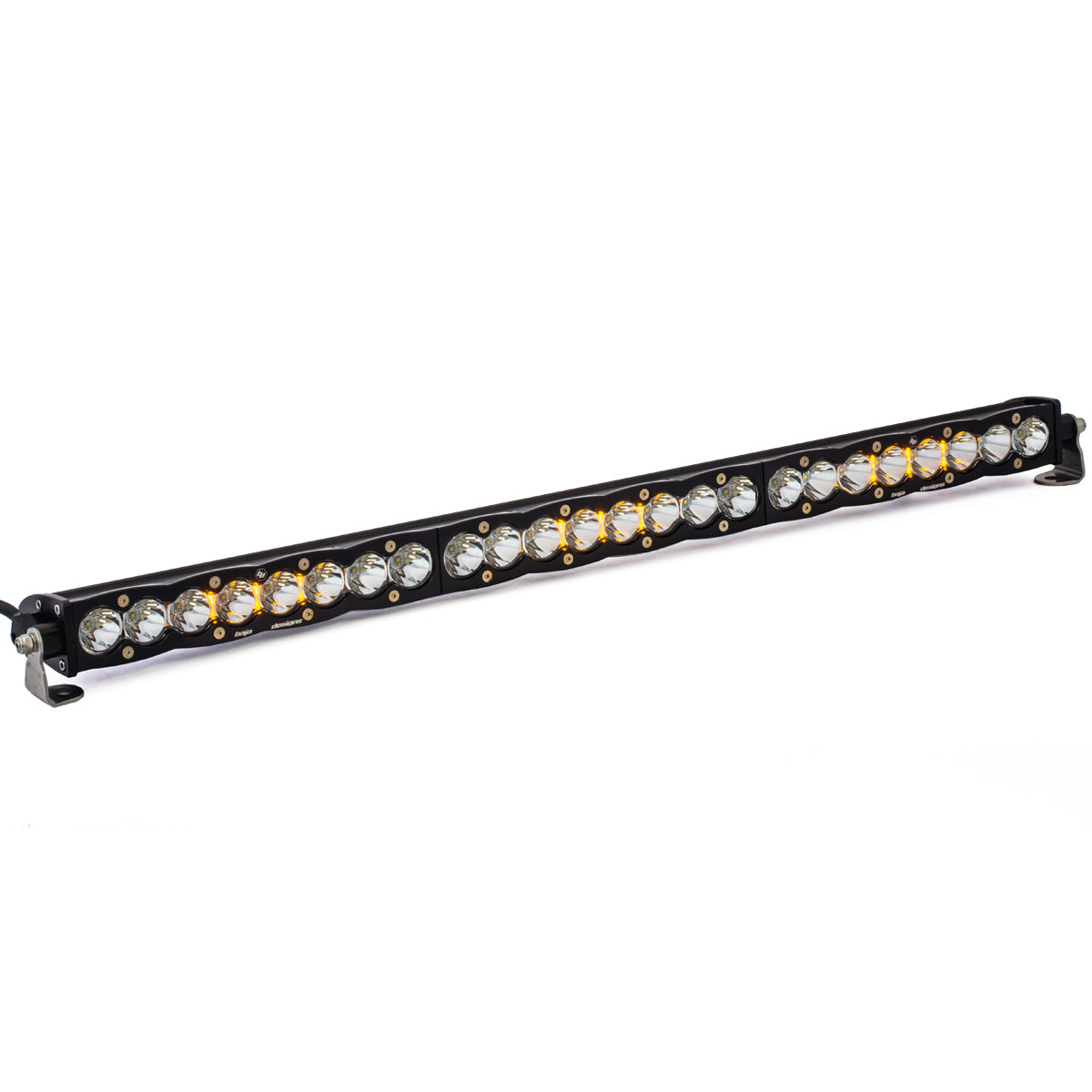

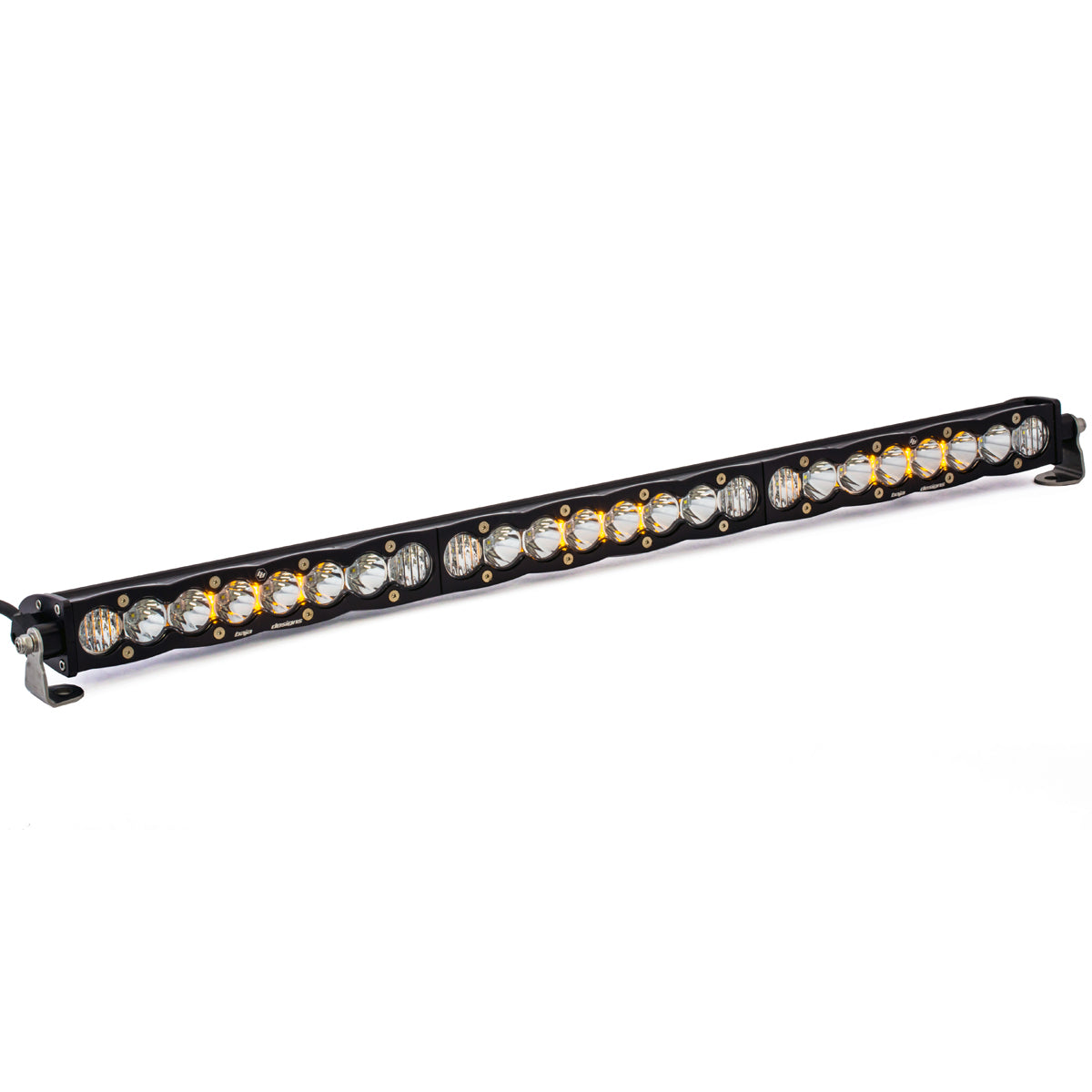

The Baja Designs S8 is a slim, single-row LED light bar with eight LEDs per 10-inch section. It is the go-to bar for flush roof rack wind deflector cutouts and low-profile bumper mounts, and it adds an amber backlight that runs independently of the main beam.

Features

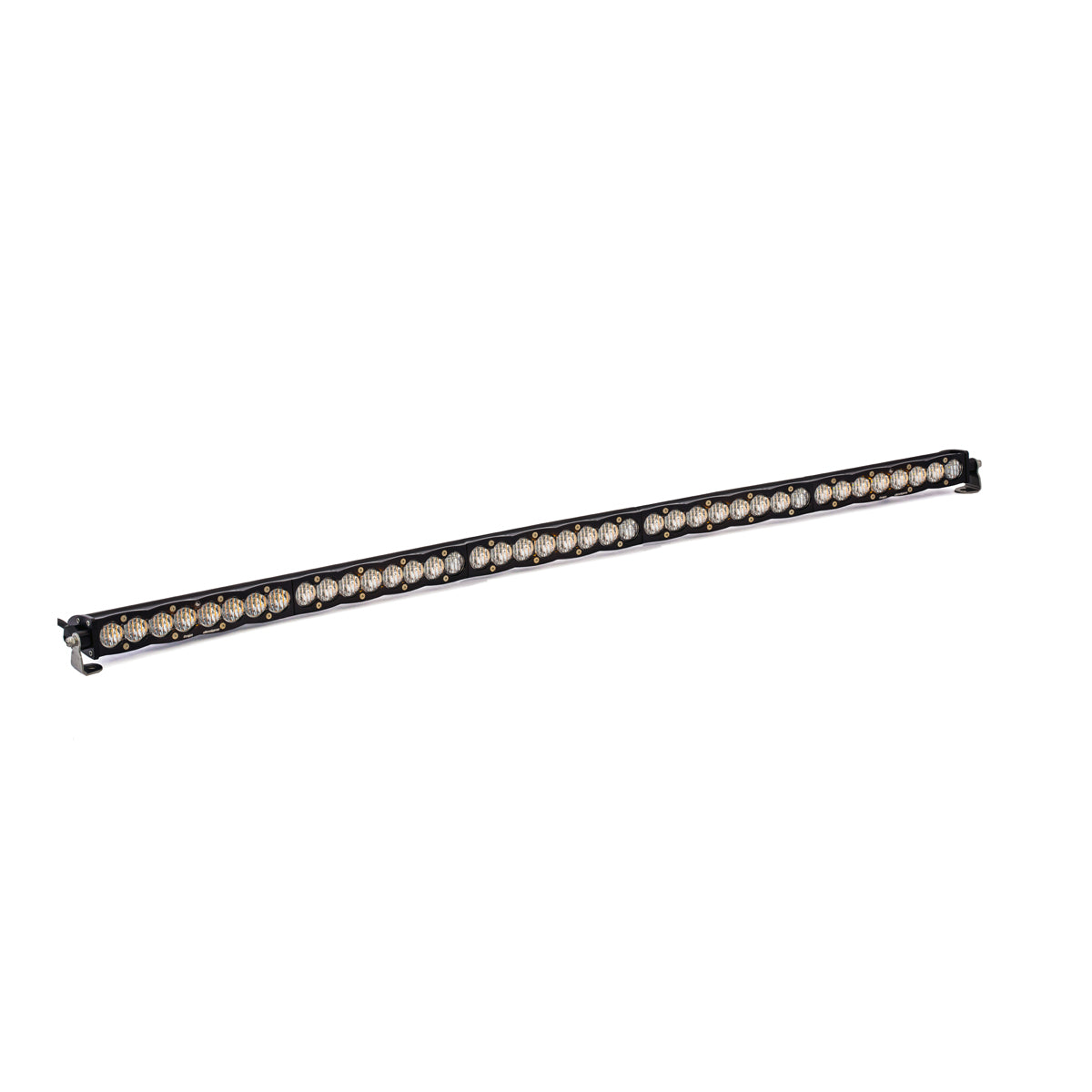

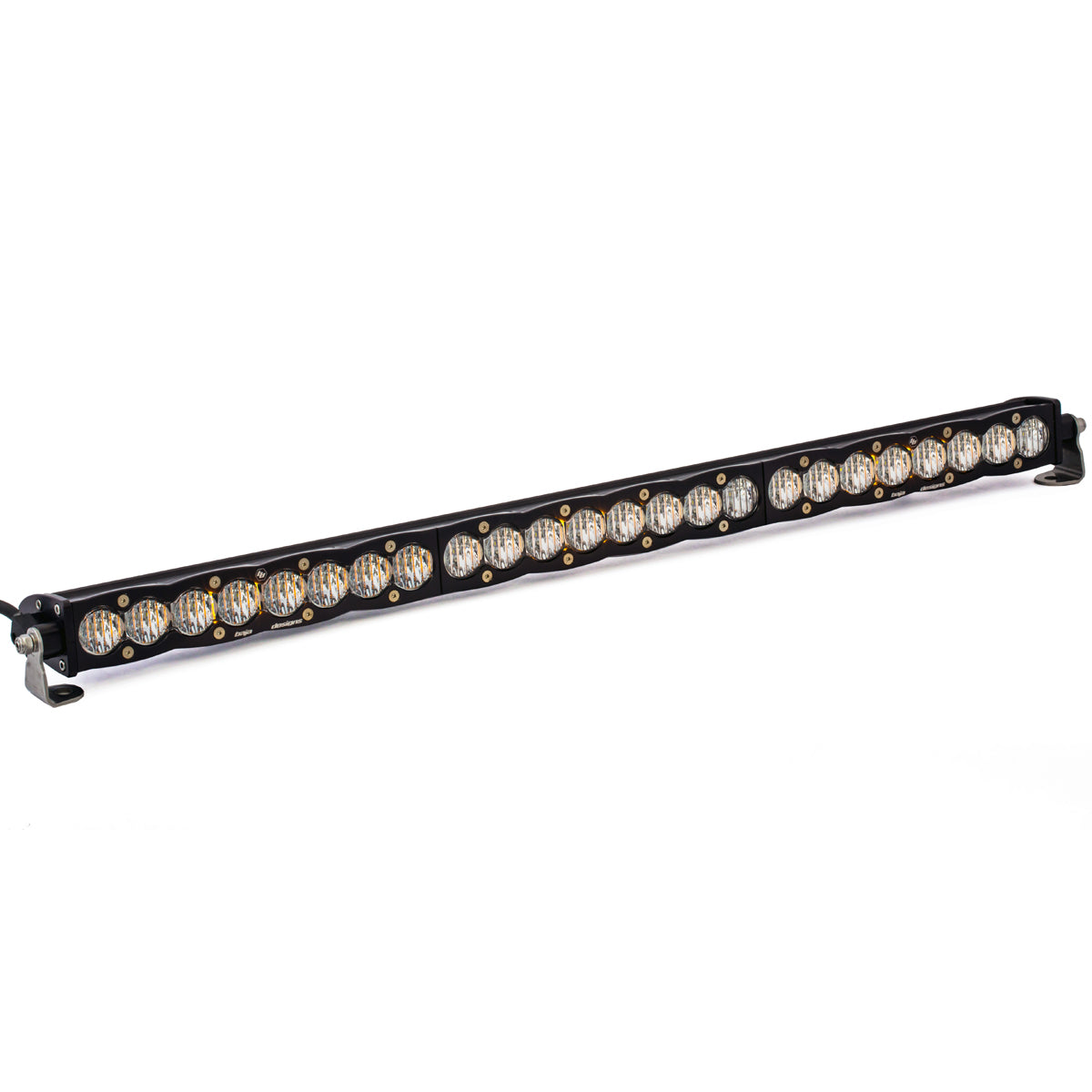

  • Single-row housing in 10, 20, 30, 40 and 50 inch lengths
  • Eight LEDs per 10-inch section, 6,324 raw lumens per section
  • High-performance reflectors

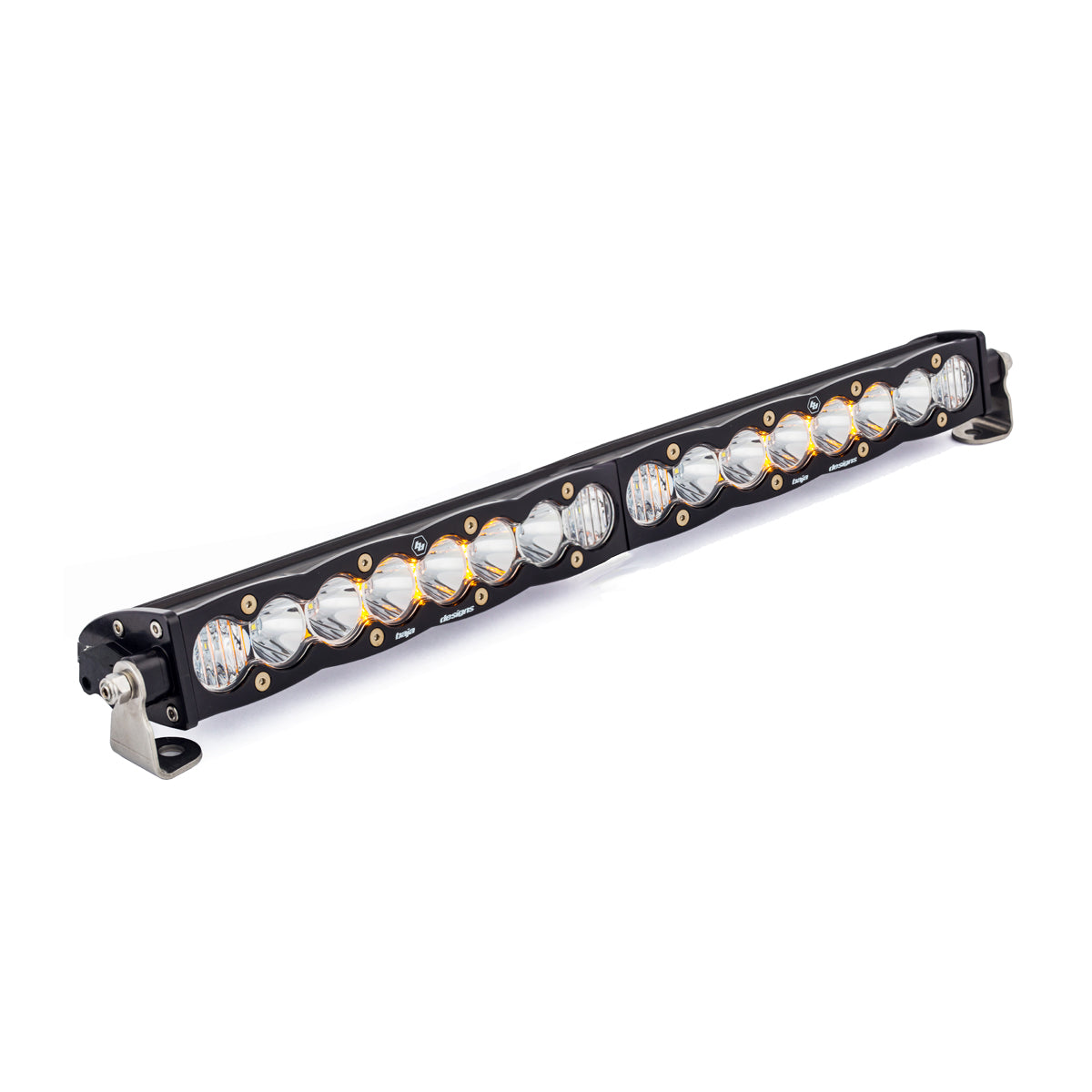

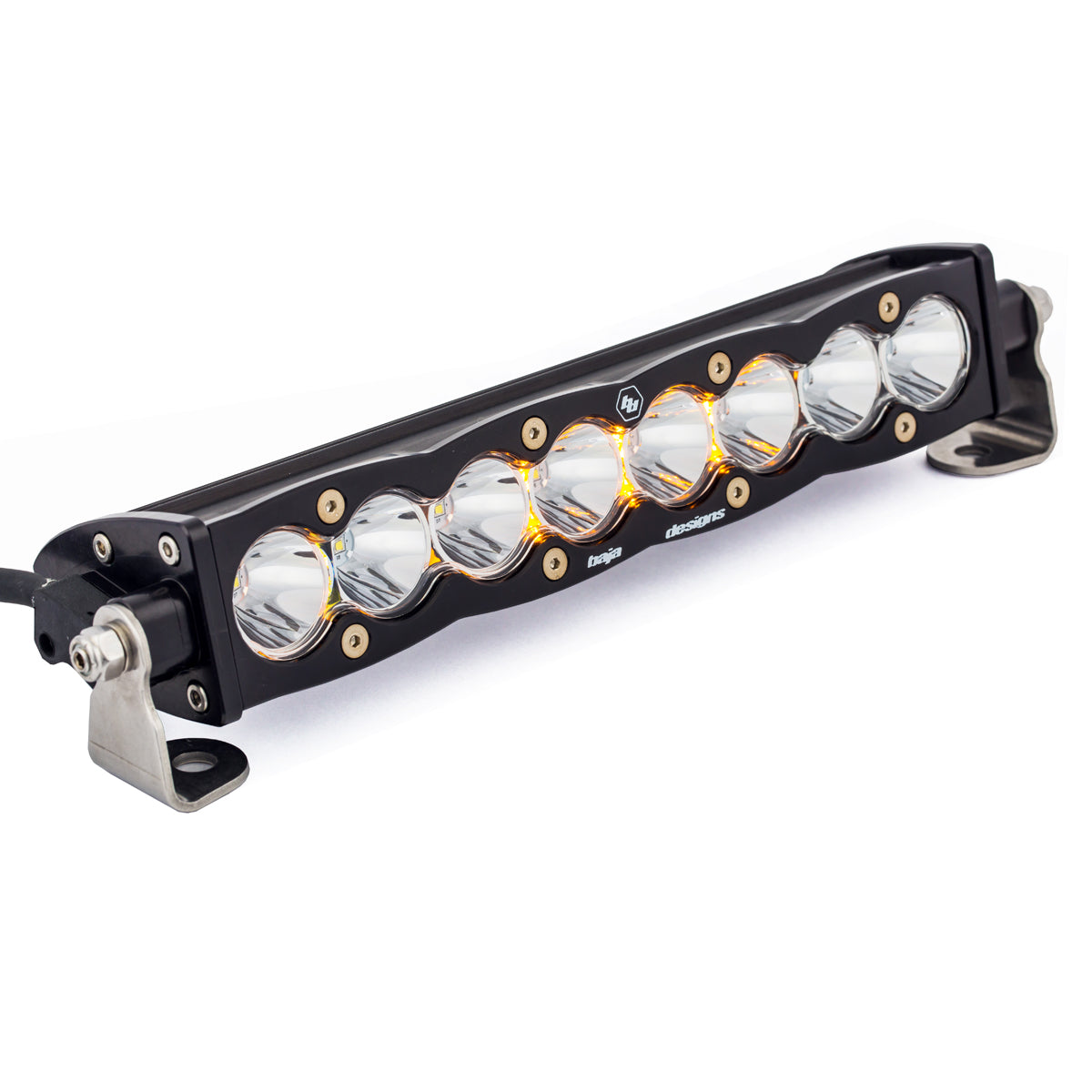

  • Amber backlight (requires mode switch harness 640122)

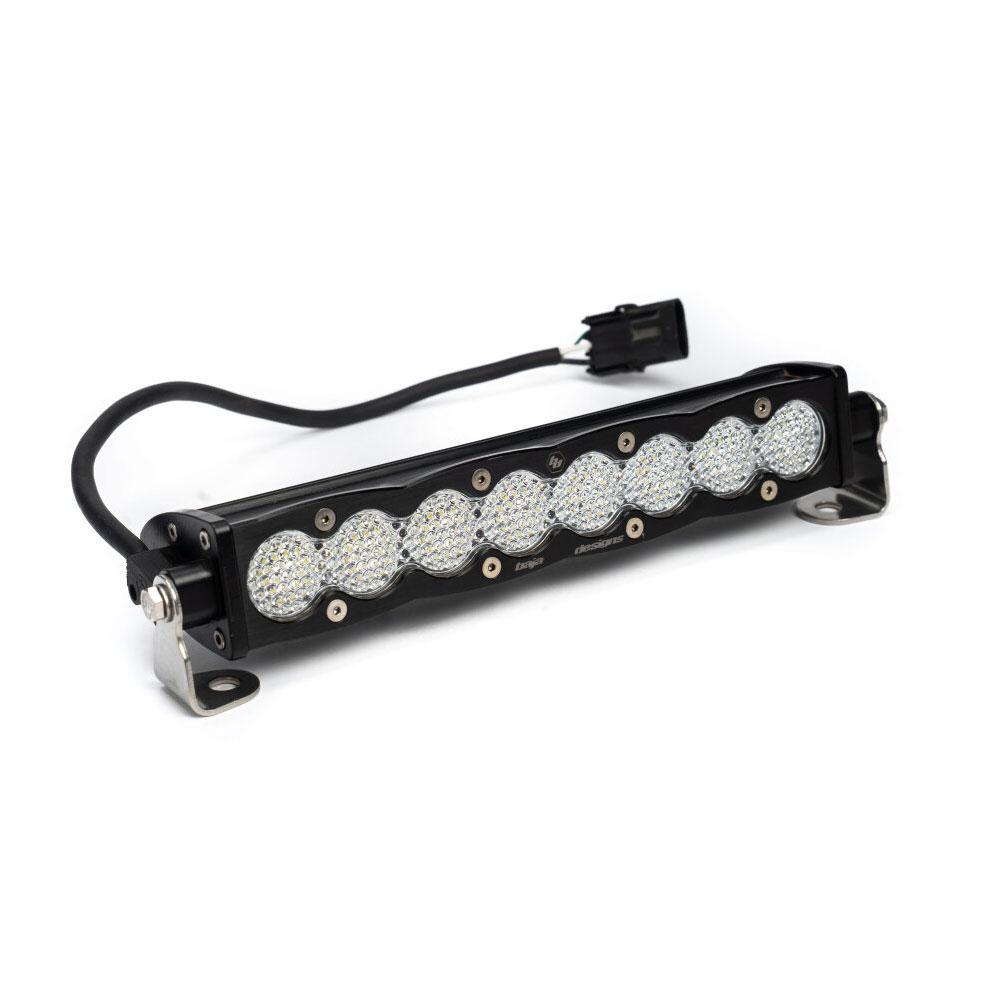

  • Four beam patterns: Spot, Driving/Combo, Wide Cornering, Work/Scene

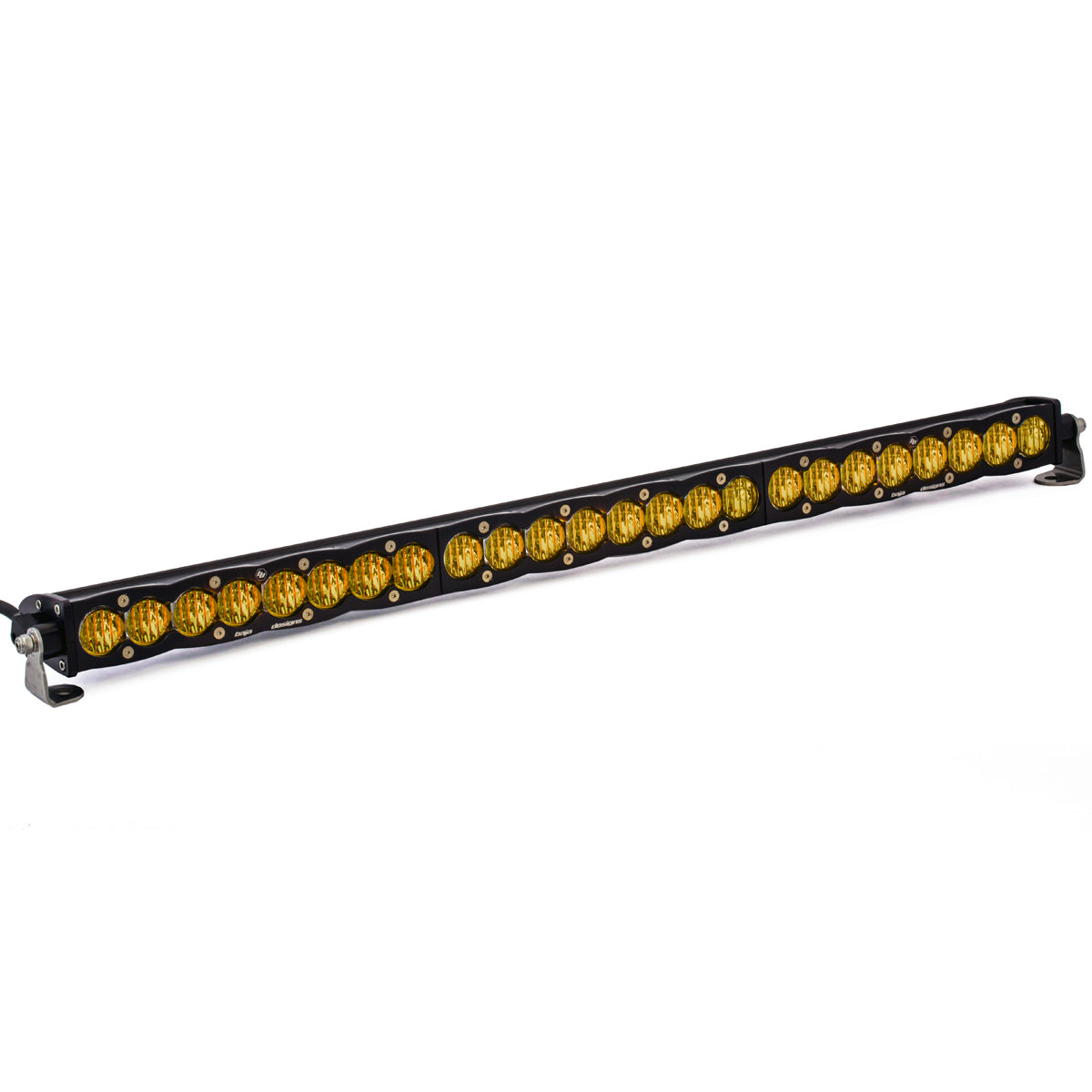

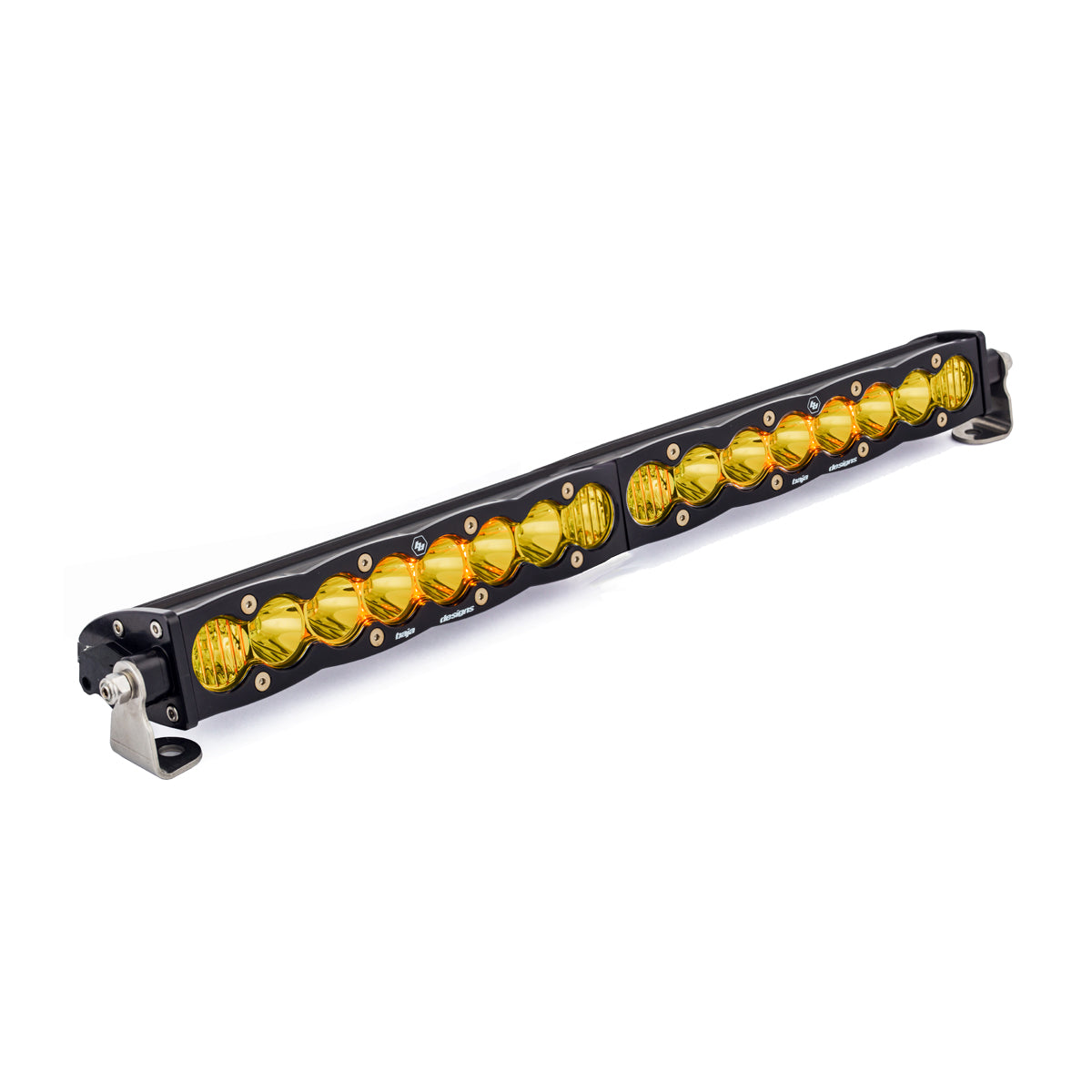

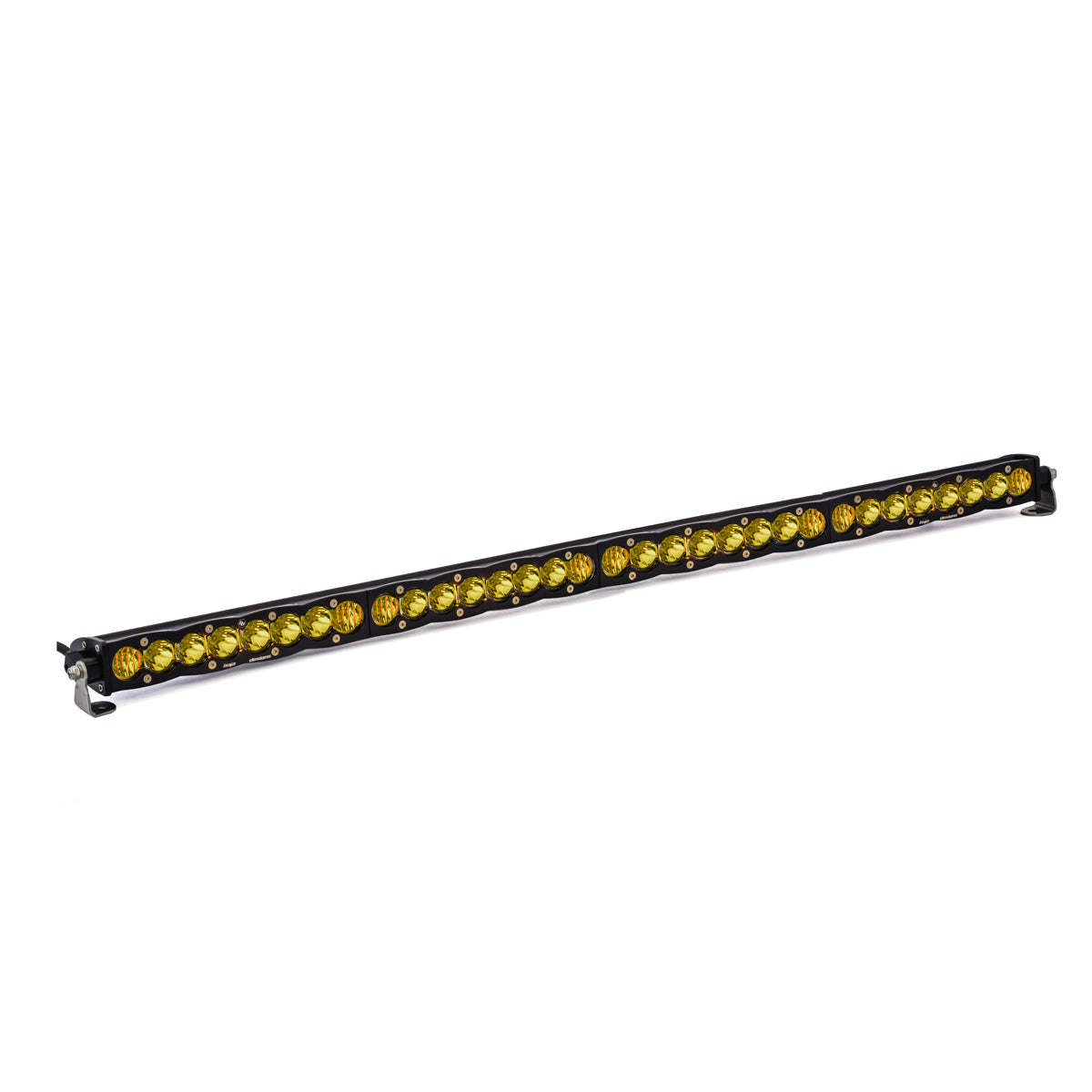

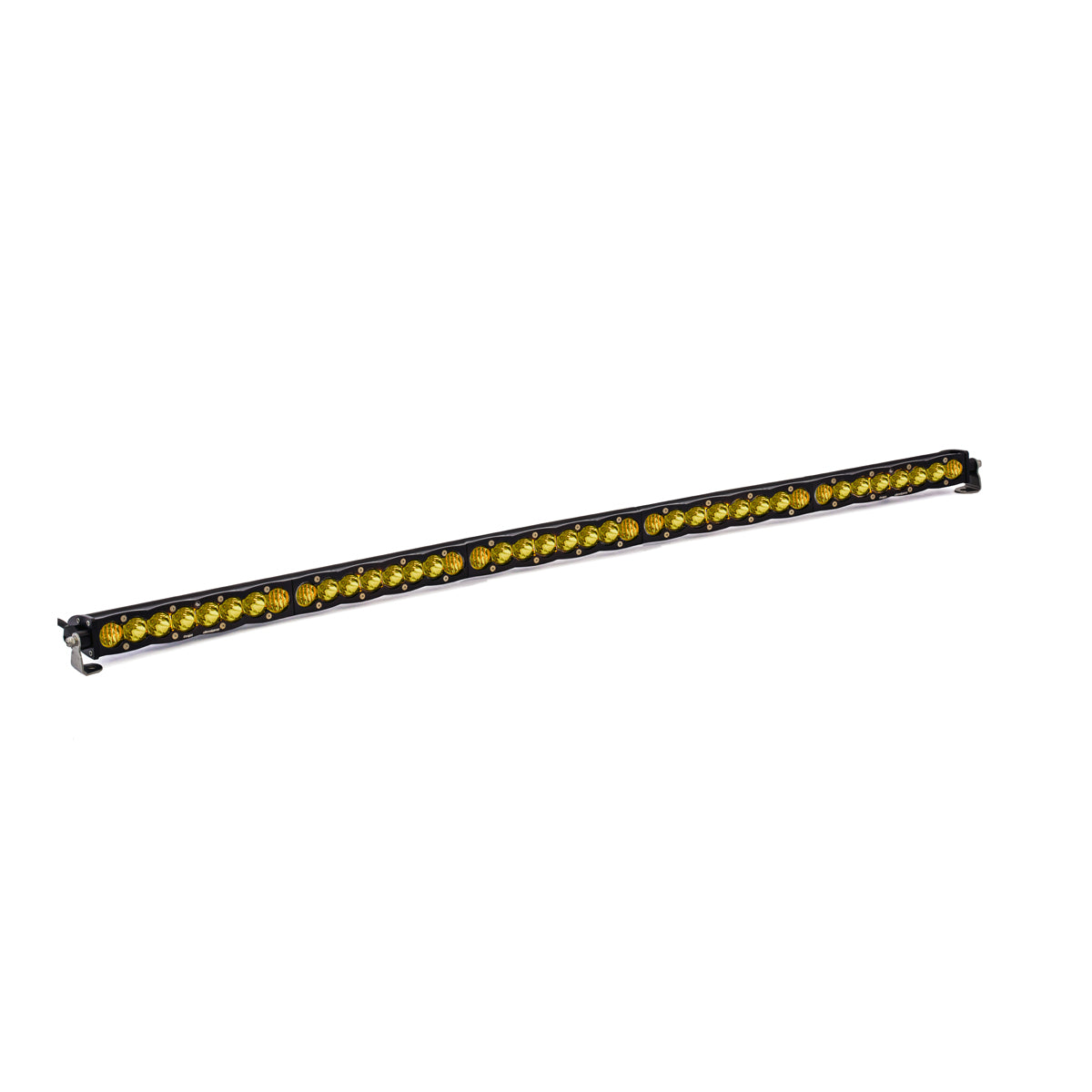

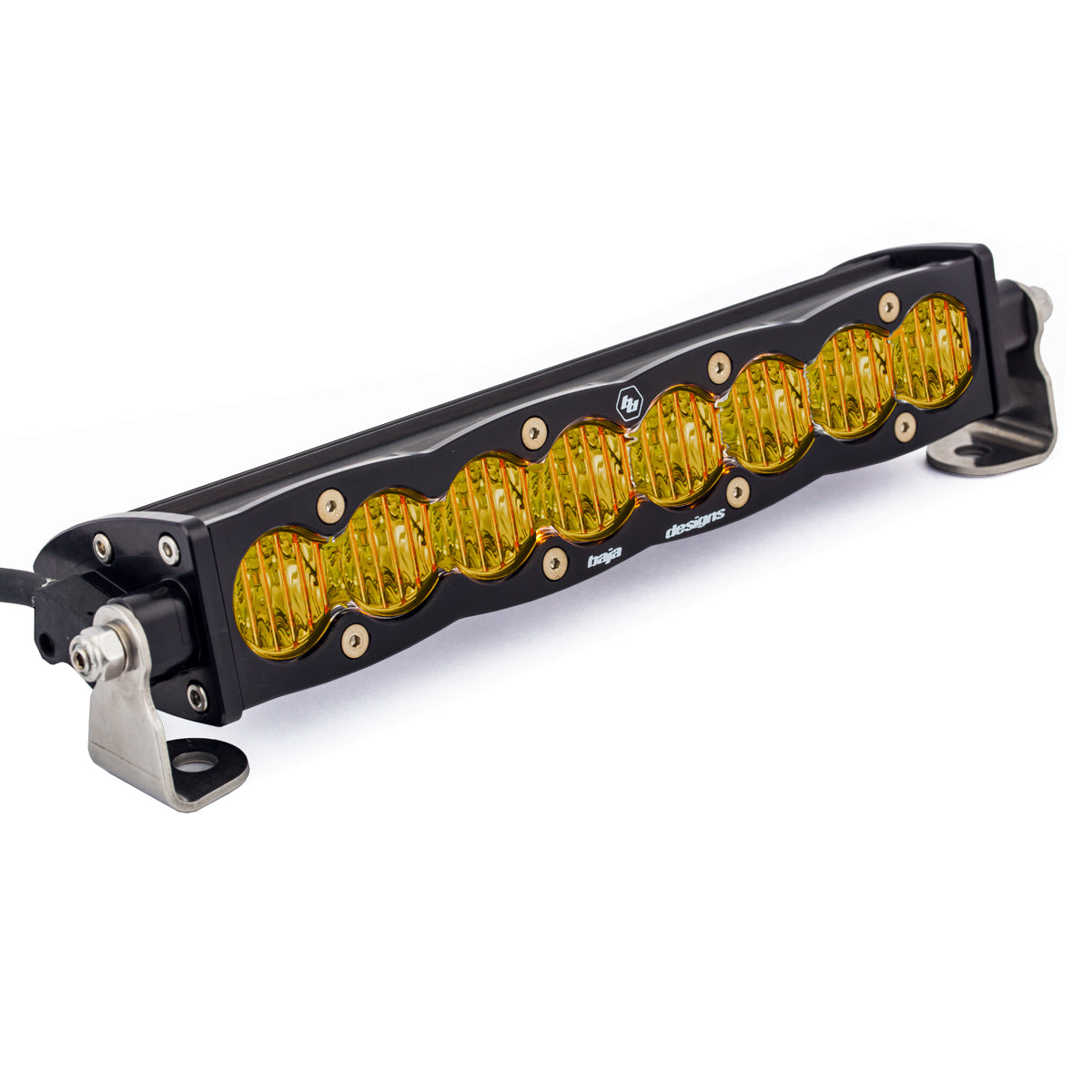

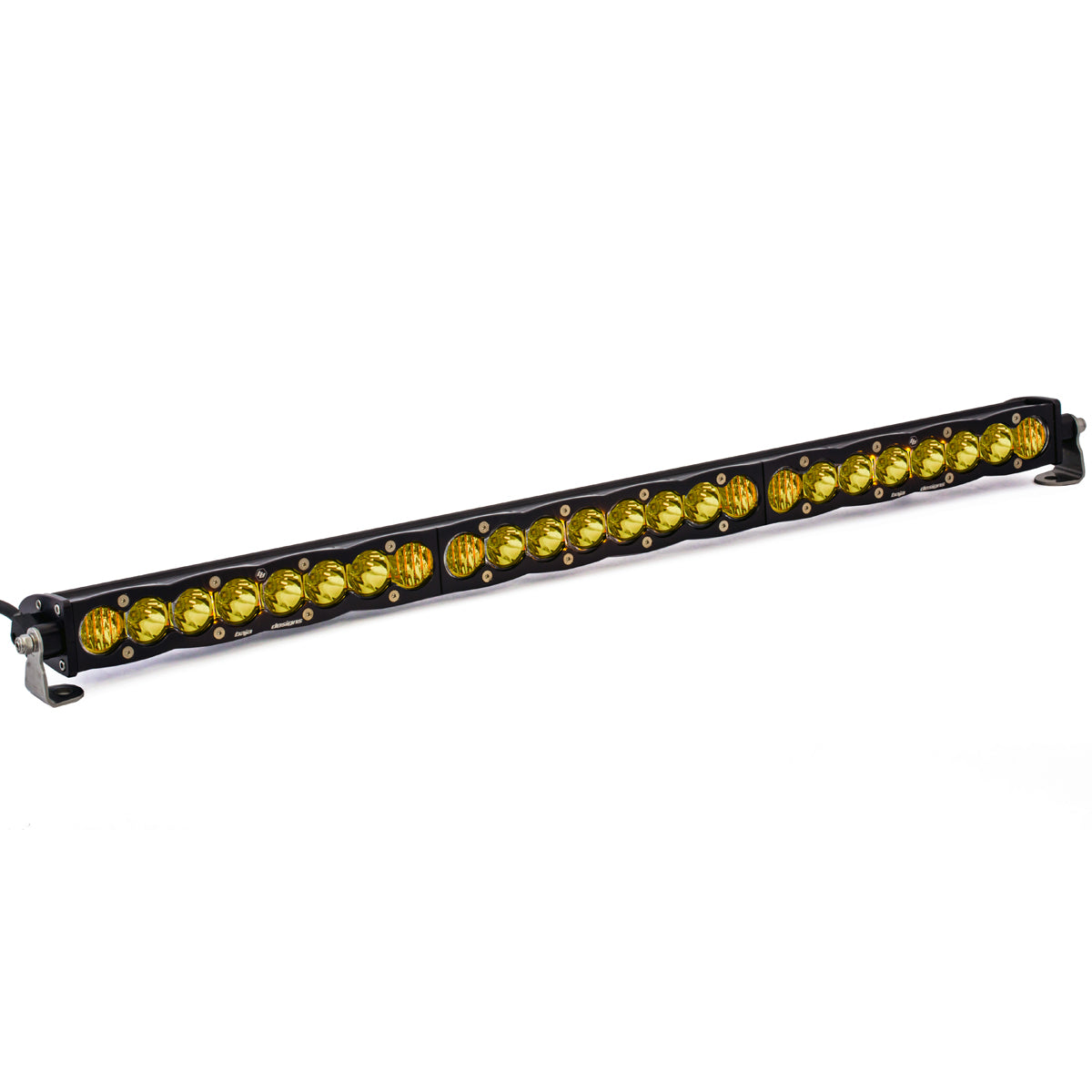

  • Clear or Baja Amber lens
  • Baja Designs 30-day satisfaction guarantee and limited lifetime warranty
  • uService design: lenses and optics are replaceable
  • MoistureBlock sealing: waterproof and submersible
  • 5000K daylight color temperature

In the Box

  • (1) S8 LED light bar
  • Mounting hardware
  • Wiring harness sold separately

Specifications

Brand Baja Designs
Series S8
Lengths 10", 20", 30", 40", 50"
Output 6,324 raw lumens per 10" section
ELS 10" Driving/Combo 116° / 7.1 / 323' / 4,910
ELS 10" Spot 88° / 6.2 / 329' / 4,690
ELS 10" Wide Cornering 126° / 6.5 / 158' / 4,595
Harness Not included: 640122 (mode switch) or 640115 (3-pin, 10"-30")
Housing Black

Before You Order

The S8 does not include a wiring harness. Baja Designs specifies harness 640122 (on/off with mode switch, runs the amber backlight) or 640115 (3-pin on/off, one bar 10 to 30 inch). We carry the OnX6/Hybrid/Laser/S8 w/Mode Switch (1 Bar) Wiring Harness. ELS (Effective Lighting Score) values are Baja Designs published figures for the clear lens: beam width / usability score / distance / effective lumens.
