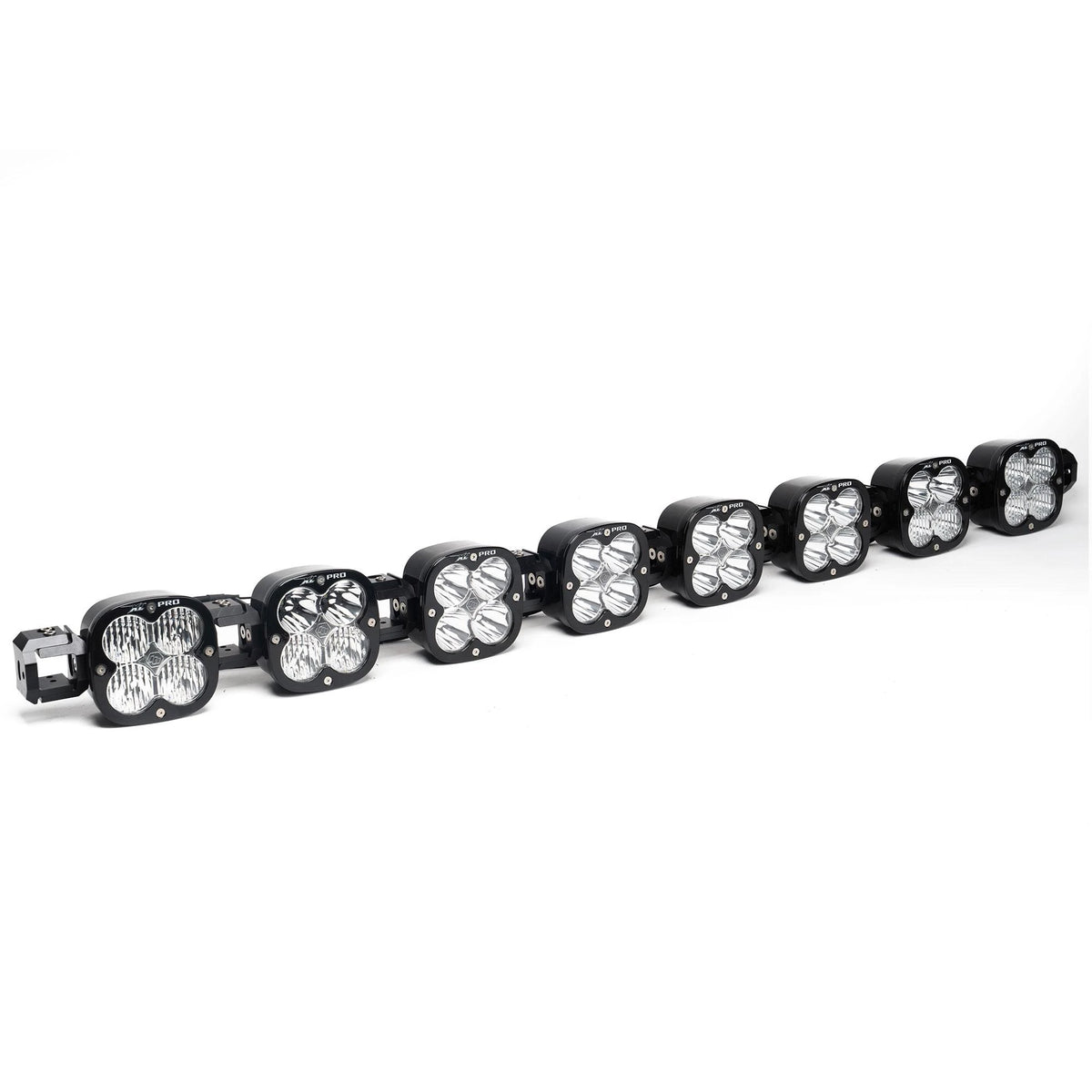

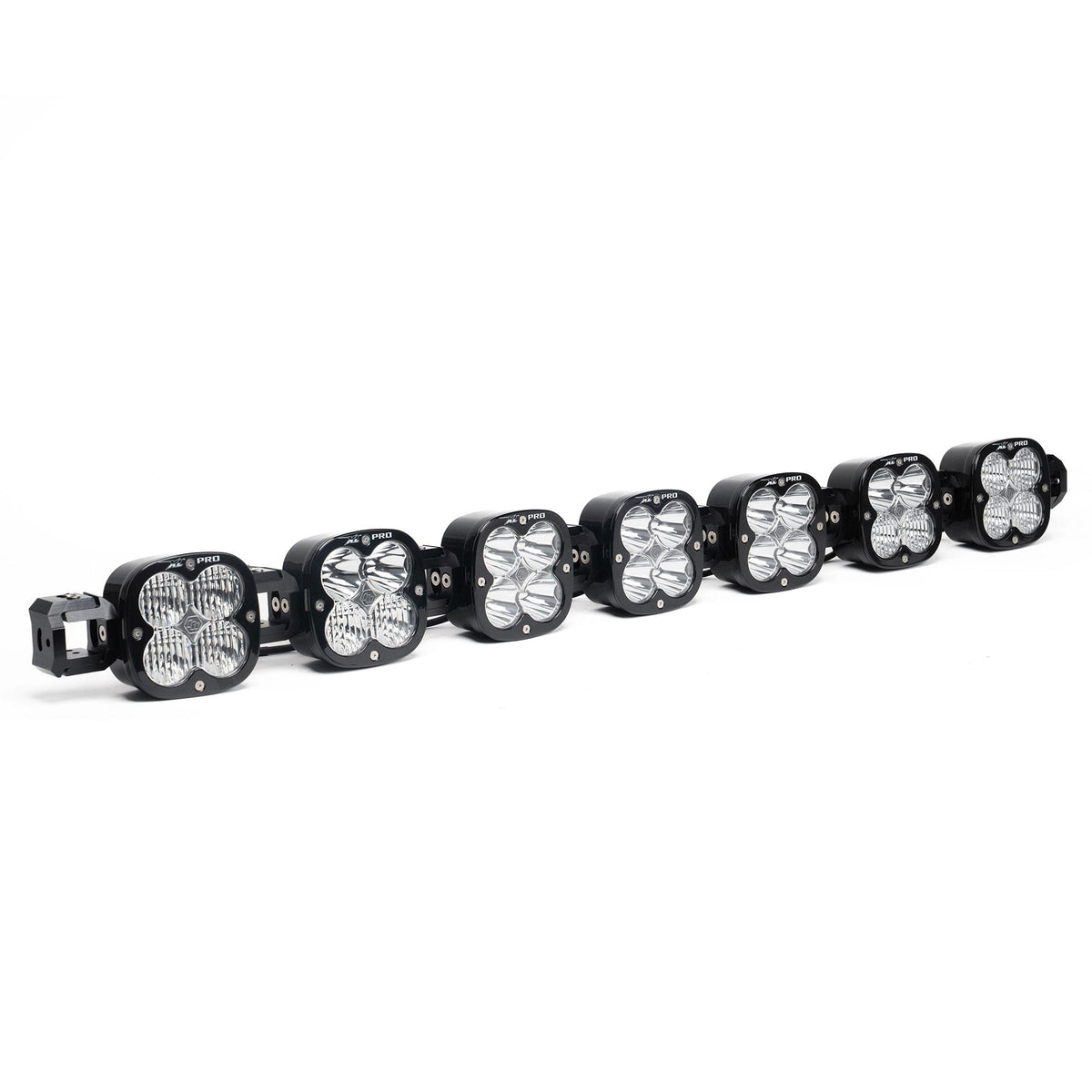

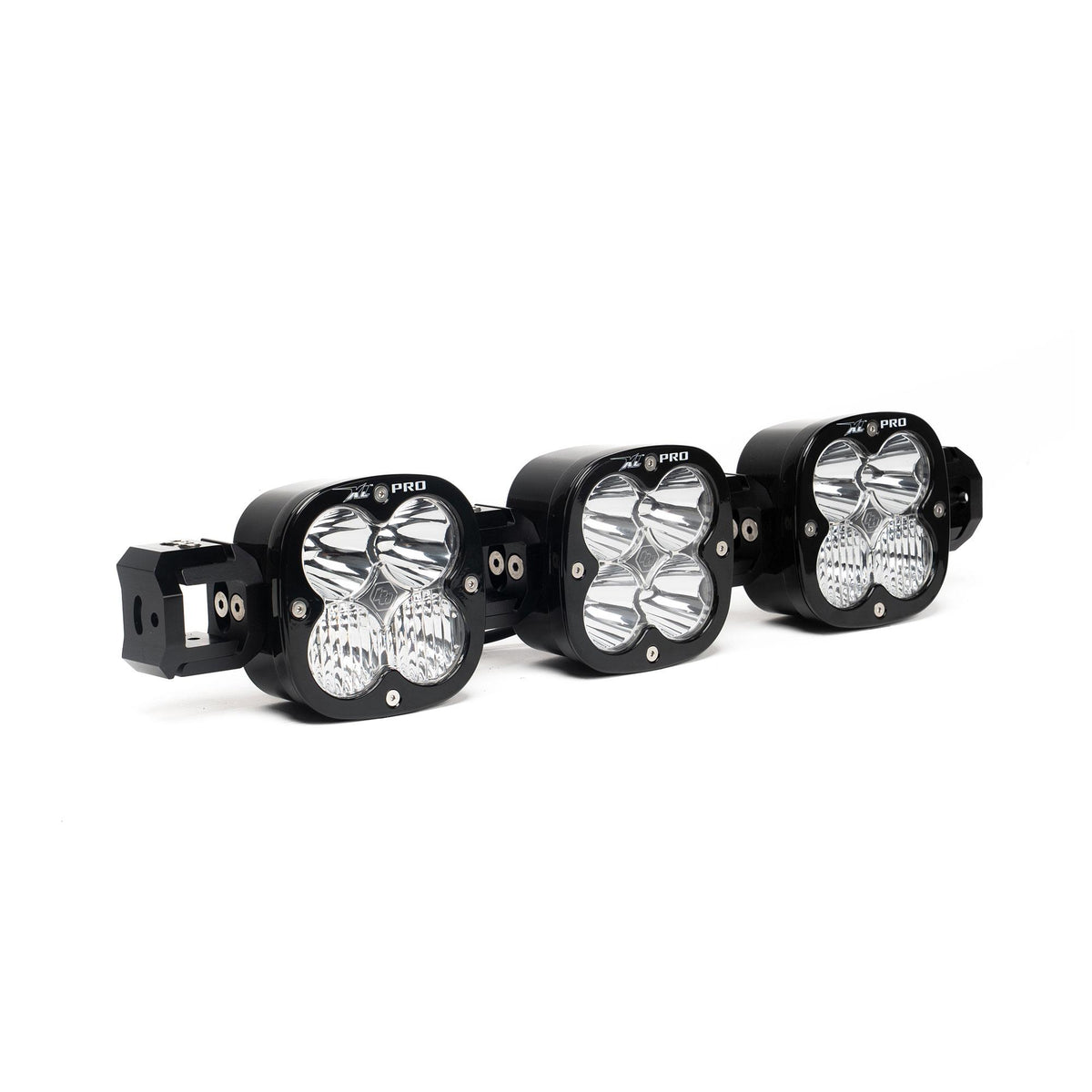

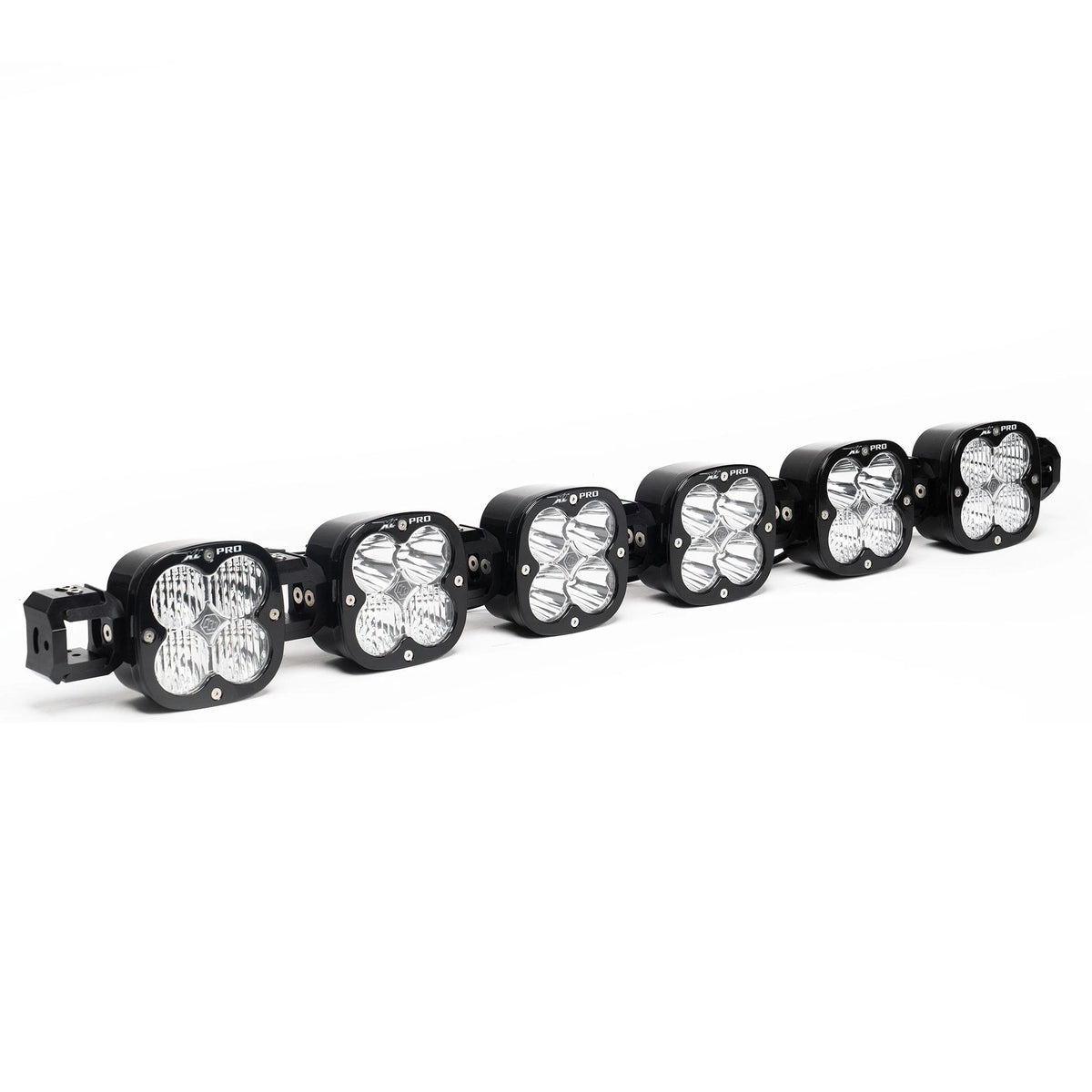

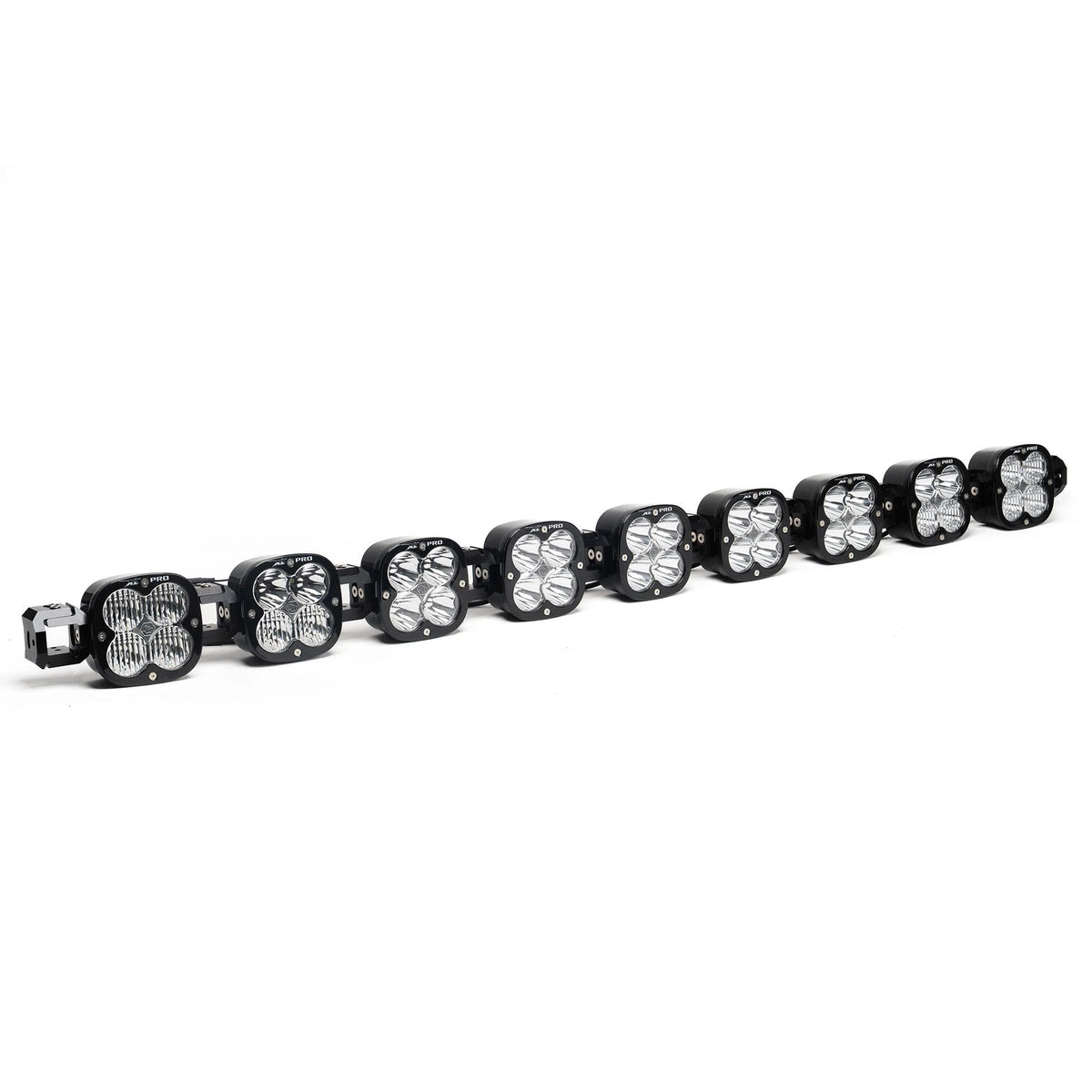

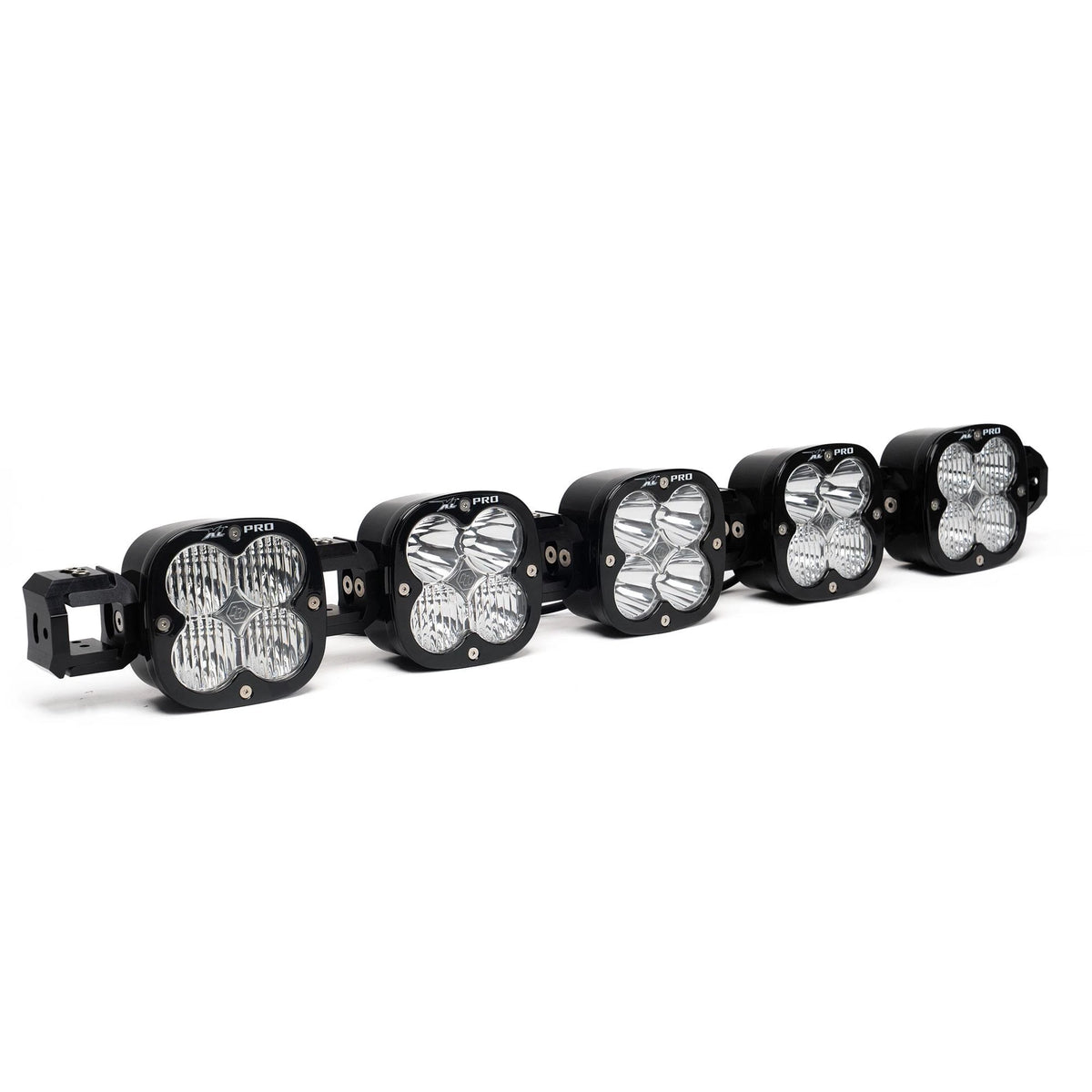

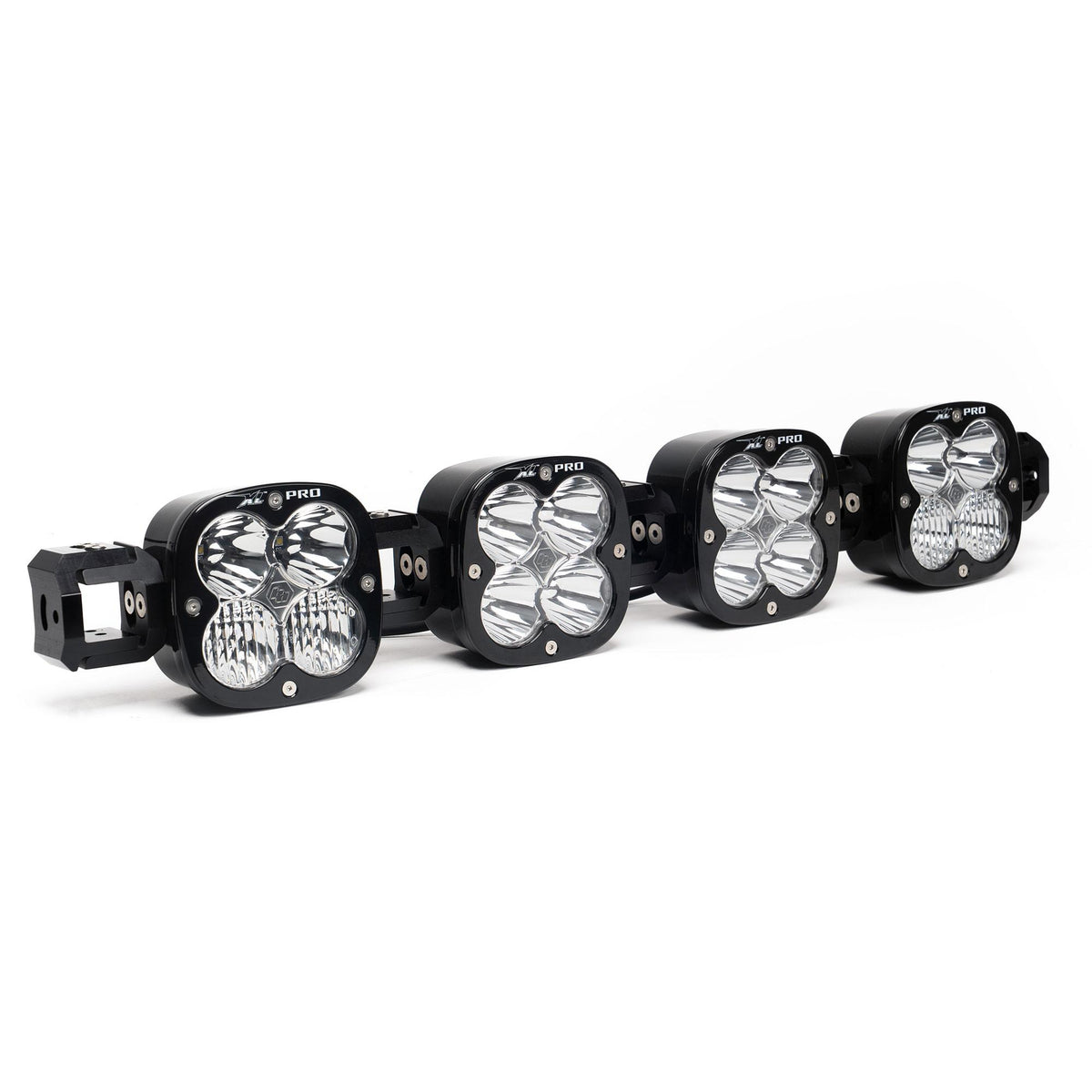

The XL Pro Linkable joins 3 to 9 XL Pro lights into one bar. Each light can be pitched and swung independently, so the bar can run straight or follow the arc of a bumper or roofline, and links can be added later.
Features
3 to 9 XL Pro lights at 4,095 raw lumens each
45 degrees of vertical pitch adjustment per light or for the whole bar
Independent horizontal adjustment per light: straight or arc
Multiple lens patterns blended across the bar
Pre-wired, crimped and trimmed; add links later
Pre-load kit and black rock guards included
Baja Designs 30-day satisfaction guarantee and limited lifetime warranty
uService design: lenses and optics are replaceable
MoistureBlock sealing: waterproof and submersible
5000K daylight color temperature
In the Box
(1) XL Pro Linkable bar (selected light count)
Wiring harness: 640115 (3-6 lights) or 640308 (7-9 lights)
Pre-load kit
Black rock guards
Specifications
Brand
Baja Designs
Series
XL Pro Linkable
Lights
3 to 9
Output
4,095 raw lumens per light
Harness
Included: 640115 (3-6), 640308 (7-9)
Mounting Brackets
Not included: 748000
Before You Order
XL Linkable mounting brackets are not included. Baja Designs part 748000 is the matching bracket set. For Prinsu racks with the 40 inch cutout on the listed Toyotas, the 7XL Linkable Prinsu kit includes rack-specific brackets.
Offroad Toy Outfitters is a veteran-owned offroad shop in Vancouver, WA. We ship Baja Designs lighting nationwide and install it in-house, including wiring integration on rack, bumper and pod builds.
