ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, Extreme Duty Tie Rod Kit

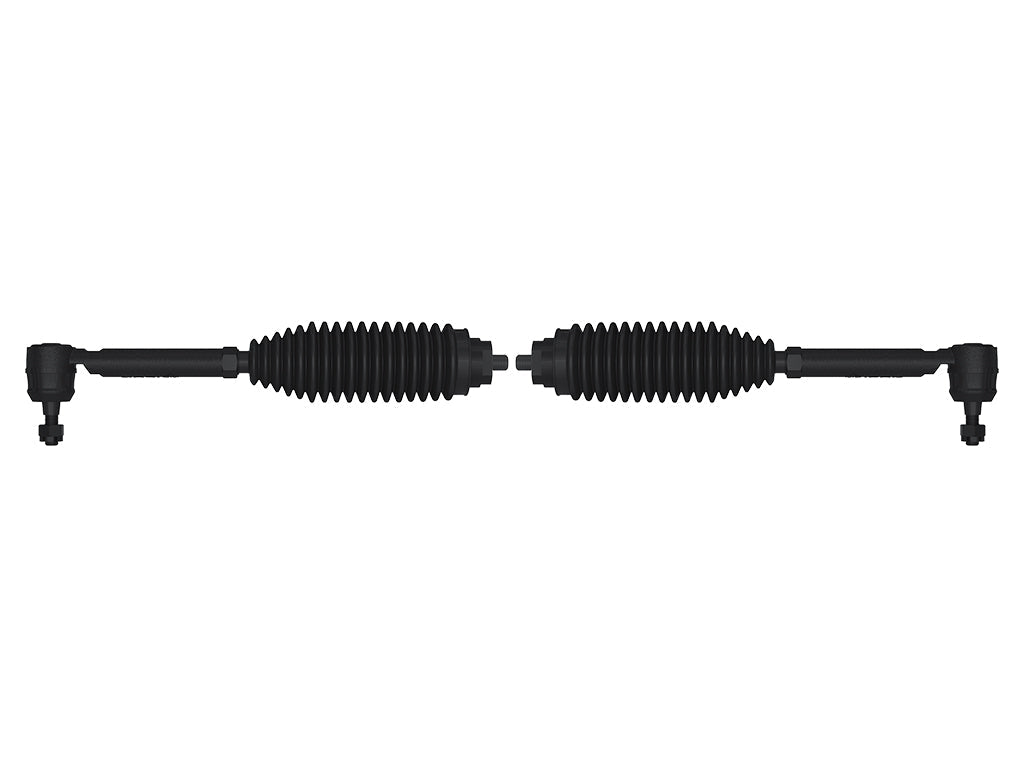

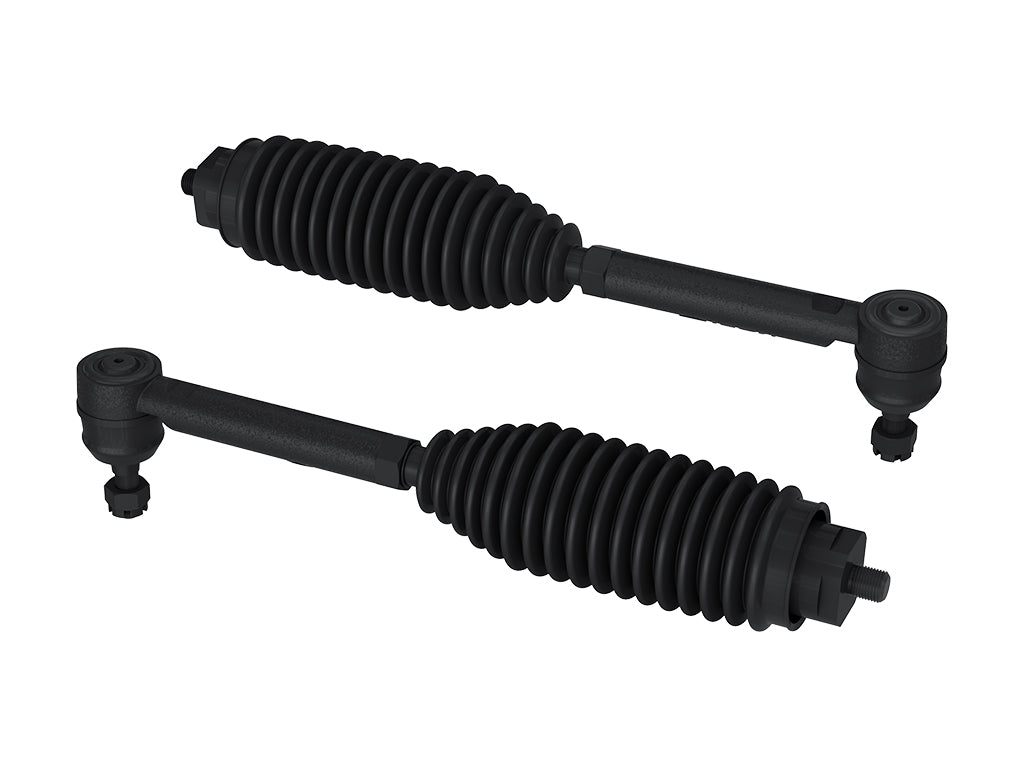

ICON Extreme Duty Tie Rod Kit (2010-2024 Toyota 4Runner / 2010-2014 Toyota FJ Cruiser)

Description

Factory tie rods on the 4Runner and FJ Cruiser have a well-known weak point that shows up fast once you're running bigger tires and hitting real rock. ICON's Extreme Duty Tie Rod Kit is built to remedy that with stronger materials and beefier dimensions than the stock units, so the steering system can keep up with the rest of your build instead of being the thing that breaks on the trail.

The inner tie rod and ball stud are CNC machined from 4140 chromoly with a metal-on-metal bearing surface, a big step up from the plastic inner races used in the factory tie rods. Adjustment threads are 12% larger in diameter than stock for added strength. The outer tie rod is forged steel and keeps the same profile as the factory piece, so it fits within factory wheel diameters and offsets as well as most aftermarket wheel setups. The tie rod end itself is a metal-on-metal joint with a grease zerk for easy service, and it holds the same range of operating angle as the stock tie rod end so steering geometry and turning radius stay true to factory.

For anyone running big tires in serious rock, this kit is a smart addition alongside a broader steering system upgrade rather than a standalone fix, since the steering system works together as a set.

Features

• 12% Larger Adjustment Threads: Increased thread diameter over factory tie rods adds strength right where the stock design is weakest.
• 4140 Chromoly Inner Ball Studs: CNC machined with a metal-on-metal bearing surface for durability well beyond the factory plastic inner races.
• Forged Steel Outer Tie Rods: Same profile as stock, so factory and most aftermarket wheel offsets still fit correctly.
• Greaseable Metal-on-Metal Joints: Built for extended service life with the same operating angle range as the factory tie rod ends.
• Sealed Inner Tie Rod Boots: Included to keep dirt and debris out of the steering rack.

Components

Inner Tie Rod & Ball Stud: CNC machined from 4140 chromoly steel, metal-on-metal bearing surface, 12% larger adjustment thread diameter than factory.

Outer Tie Rod: Forged steel, factory-matching profile for correct wheel fitment.

Tie Rod End: Metal-on-metal, greaseable joint design, factory-matching range of operating angle.

Boots: Inner tie rod boots included to protect the steering rack from dirt and debris.

Spec

Compatibility

Weight / Dimension

Materials

Warranty

Limited lifetime warranty from ICON Vehicle Dynamics.

Compliance

California Prop 65 Warning: this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
