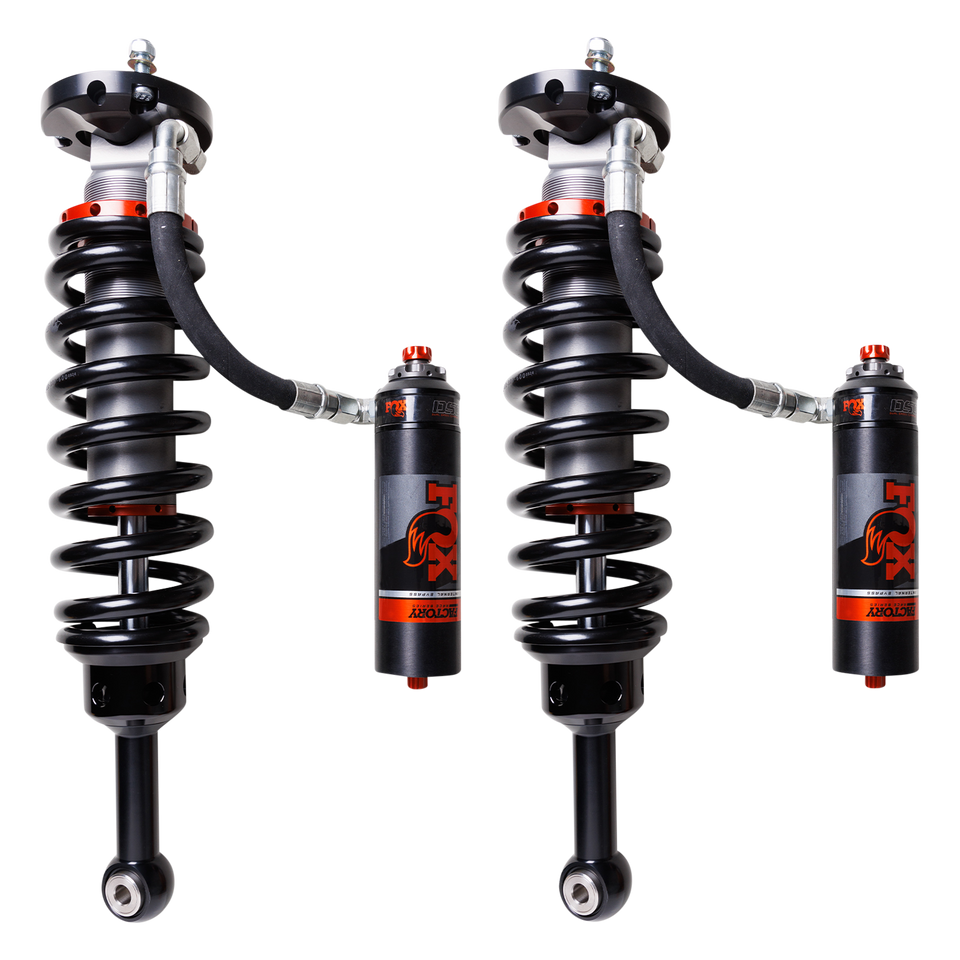

2003-2024 TOYOTA 4RUNNER | 2.5 FACTORY RACE SERIES - Front Coilovers

FOX 2.5 Factory Race Series Internal Bypass Coilovers

2003-2024 Toyota 4Runner Front
2007-2014 FJ Cruiser Front

SKU: 883-06-227 | Part: 883-06-227

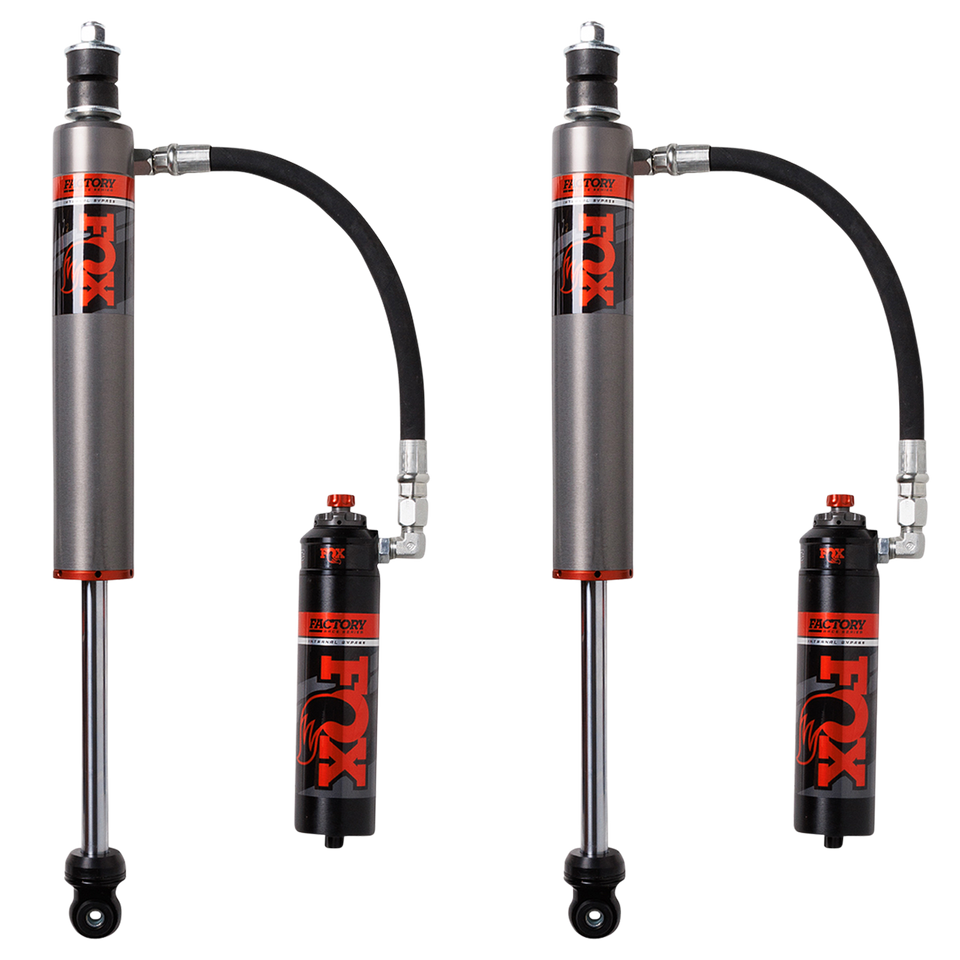

Pairs great with these rear shocks: 883-26-145

When your rig needs to perform at speed across rough terrain without sacrificing daily drivability, the FOX 2.5 Factory Race Series delivers. These bolt-on internal bypass shocks bring race-proven suspension technology to your truck without custom fabrication.

Patented Internal Bypass Technology
Multiple damping zones are built into the shock body itself. In the ride zone, fluid bleeds through ports in the shaft for a supple, controlled feel. Push into compression or rebound extremes and those ports close off, forcing fluid through the main piston for progressive resistance — catching hard bottoms, preventing harsh top-outs, and cushioning landings.

Dual Speed Compression (DSC) Adjuster
Dial in damping on the fly to match your load, terrain, and driving style. The external reservoir-mounted DSC gives you real adjustability without pulling the shocks.

Built to Last

• 2.5" impact-extruded, CNC-machined 6061-T6 aluminum body with Type III hard anodizing
• 7/8" hard chromed steel shafts
• Redundant sealing system: main seal + wiper seal + scraper seal
• External reservoir with internal floating piston (IFP) separates oil and nitrogen charge for consistent damping and cooler operating temps

Specs

• Travel: 5.29"
• Extended Length: 22.48"
• Compressed Length: 17.19"
• Top Mount: OEM
• Bottom Mount: Eyelet
• Note: Requires Upper Control Arms, so check THESE out!

Fits: Toyota 4Runner (confirm year fitment via FOX shock finder or contact us)
